Netra Pro

Overview

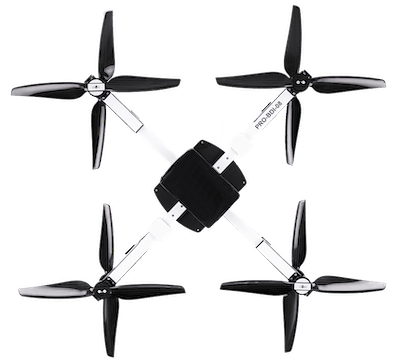

NETRA Pro UAV is the most versatile Unmanned Aerial Vehicle with supply drop capability. The drone can used in the most demanding conditions as it is rugged & IP53 ingress certified. It is also highly reliable as it has multiple fail safes operations and redundancies for GPS and rotor systems. It is also very versatile it can operate two payloads simultaneously such as day and night cameras, LiDAR, multispectral cameras & supply drops

This multi-role UAV is used for Security & Surveillance, Inspection, Photogrammetry, Traffic Management, Crowd Management, Disaster Relief, Harsh Environment Operation and Supply Drops.

Technical Specifications

Endurance: > 30 minutes with 500 g payload Range (LoS): > 4 km Weight: < 6 kg with maximum payload Wind Resistance: Up to 20 knots or 36 km/h Max Operating Altitude: Up to 400 m AGL Max Launch Altitude: Up to 3000 m AMSL Vehicle Size: < 1 m x 1 m

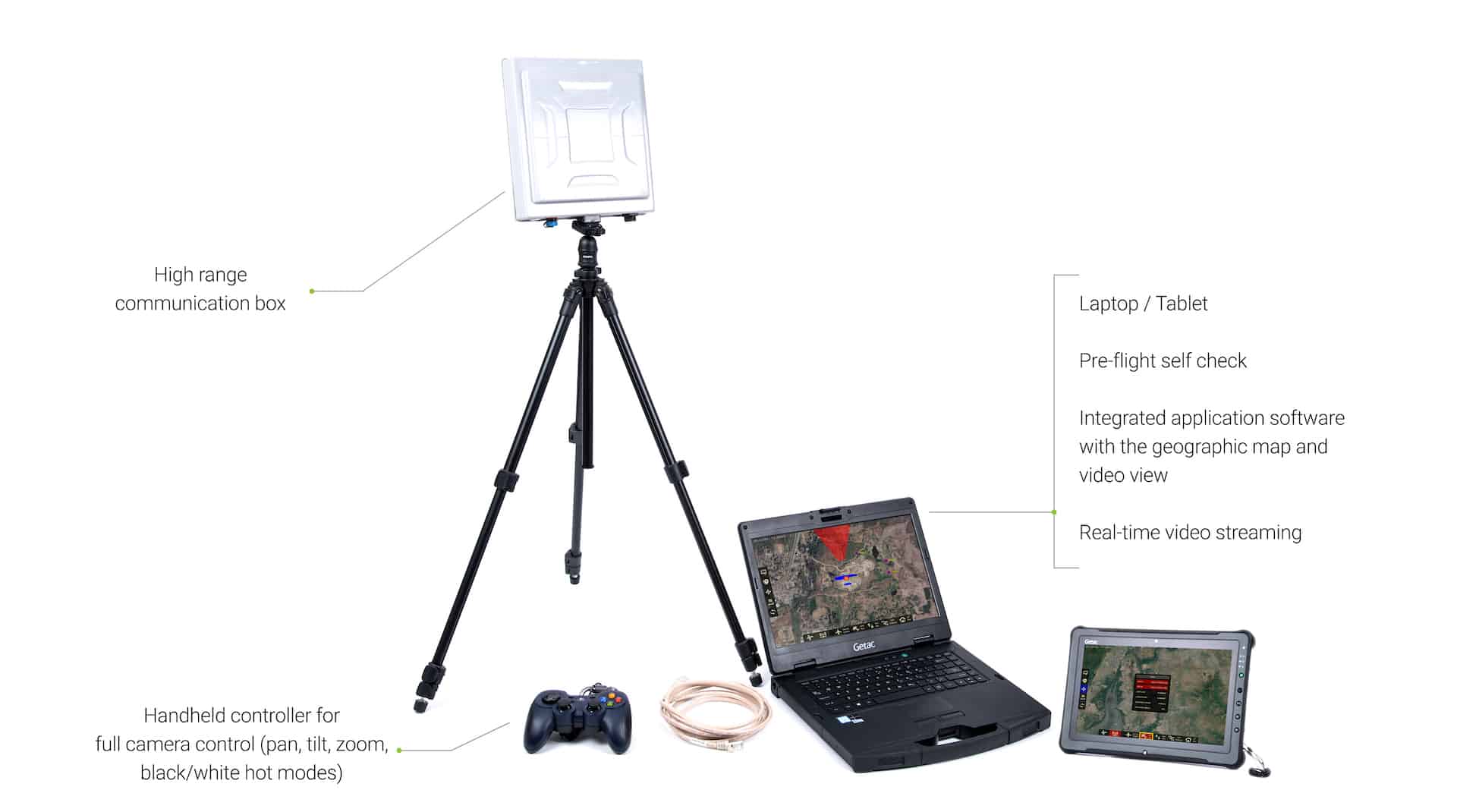

Ground Control Station (GCS) Features

Fail-Safe Features

Multiple GPS for redundancy	Return home on low battery	Return home on high winds	Motor Failure Redundancy

Applications

Anti Terror Detect threats and identify risk-prone areas from a remote location	Border Security Conduct reconnaissance missions and track illegal activities without risking lives	Counter Insurgency Conduct surveillance and gather actionable intelligence	Crime Control Enhance law enforcement with remote situation assessment and crime scene analysis
Disaster Management Gain real-time knowledge of the situation and plan search and rescue operations effectively	Forest & Wildllife Track criminal activity in protected areas and boost conservation efforts	Industrial Asset Inspection Examine solar farms and detect anomalies with fewer or no personnel	Mining Use aerial surveys and photogrammetry to improve blast optimization
Oil & Gas Eliminate human intervention for detecting leaks or emissions, spills and corrosion in hard-to-reach areas	Power Transmission Inspect transmission towers and distribution infrastructure without risking human lives	Solar Energy Capture in-depth infrared signatures and hot spots of defective panels accurately to improve operating efficiency	Wind Energy Get in-depth analysis of blades, nacelle and towers at lowered operation costs & time
