Overview

RYNO is ideaForge’s micro category survey-grade drone designed and specialized for mapping applications. It is equipped with an advanced mapping payload and ideaForge’s state-of-the-art- PPK module to deliver superior results. Due to its high accuracy in mapping applications, it is the only micro category drone that has been approved by the Survey of India (SOI) towards the Swamitva Yojana, which is set to be one of the largest drone-powered mapping projects in the world.

Tech Specs

India is a vast and diverse country. Frigid mountainous regions, hot deserts, humid plains and wetlands with torrential rains, the country has regions that represent every weather pattern and terrain conditions. Proudly Made in India, RYNO UAV has been built to withstand these demanding conditions and deliver stellar performance.

Aerial Vehicle (AV) Characteristics

UAV Weight with battery and max. payload	<2 Kg
Range of live transmission (LOS)	4 km (un-obstructed & interference free)
Typical Cruise Speed	10 m/s
Functional Temperature Range	-10°C to +50°C
Dust & Drizzle Resistance	IP53 rating
Deployment Time	<10 minutes
Packaging and Storage	Backpacks to carry all mission critical components
Regulatory Compliance	NPNT Ready – applicable for Indian airspace

Base Station Characteristics

GNSS Grade

High accuracy L1 & L2 Frequency Band Enabled

Mapping Performance at 60m AGL

Ground Sampling Distance (GSD)	<3 cm
Typical X, Y accuracy	<5 cm
Typical Z accuracy	<10 cm
Absolute X, Y accuracy	<10 cm (with 95% confidence interval)
Absolute Z accuracy	<20 cm (with 95% confidence interval)

Ground Control Station (GCS) Software Features

Terrain Avoidance	Detects and avoids natural terrain by using elevation data (where available)
Geo Tagging

Communication link Characteristics

Autonomous Flight Termination System or Return Home (RH) option

Return home triggered by land command on various fail safe features

Failsafe Features

Multiple GPS on-board	For Redundancy
Auto-Return to Home and Land	On Communication Failure
Auto-Return to Home and Land	On Low Battery
Auto-Return to Home and Land	On exceeding Wind limit of the system
On Battery Imbalance
Auto-Return to Home and Land	On exceeding Temperature limit of the system

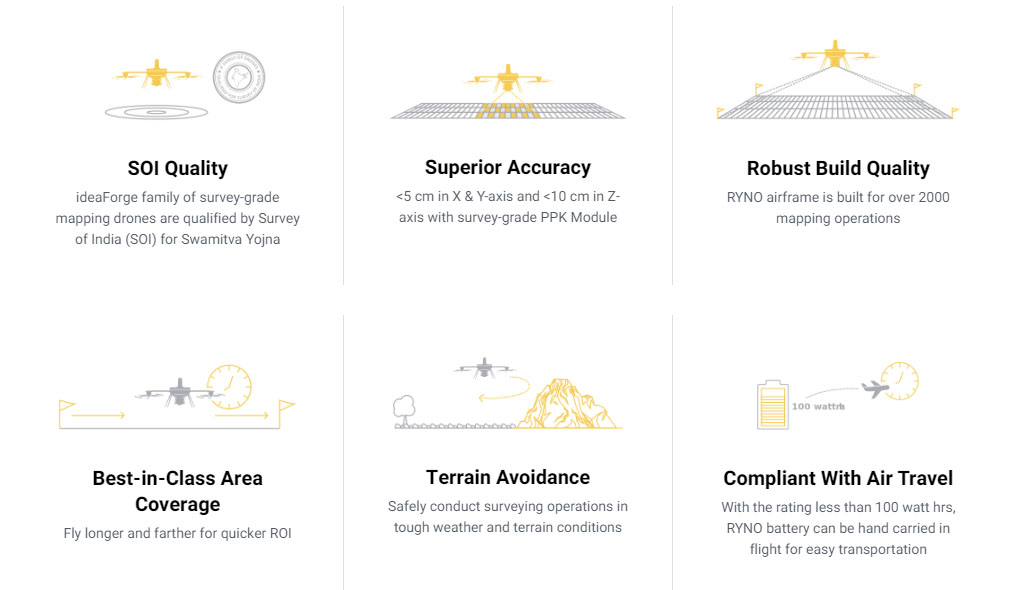

Features

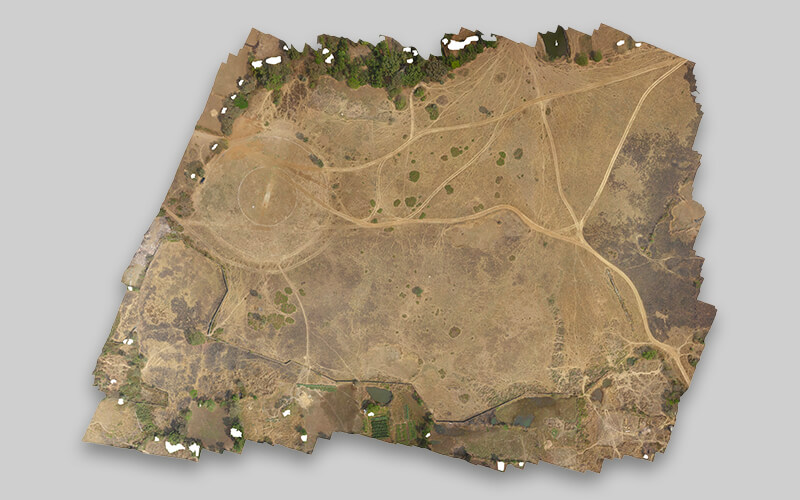

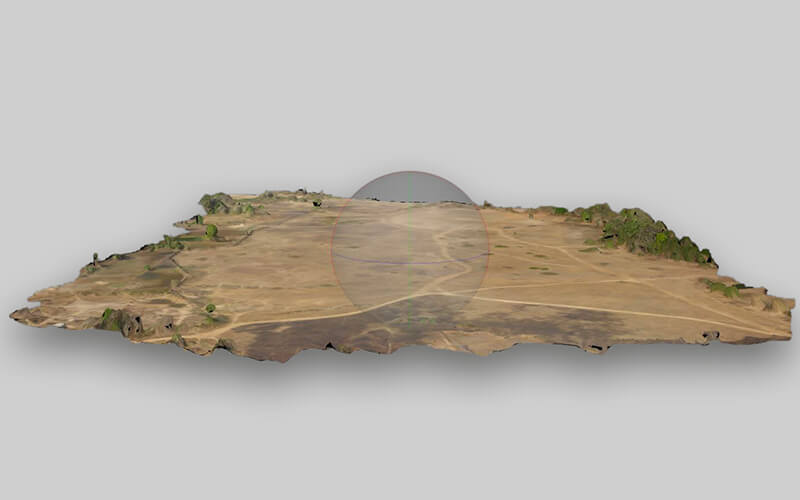

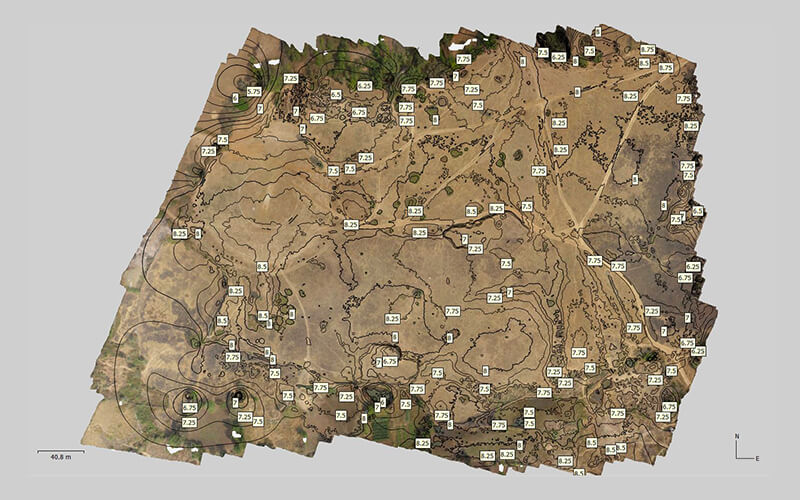

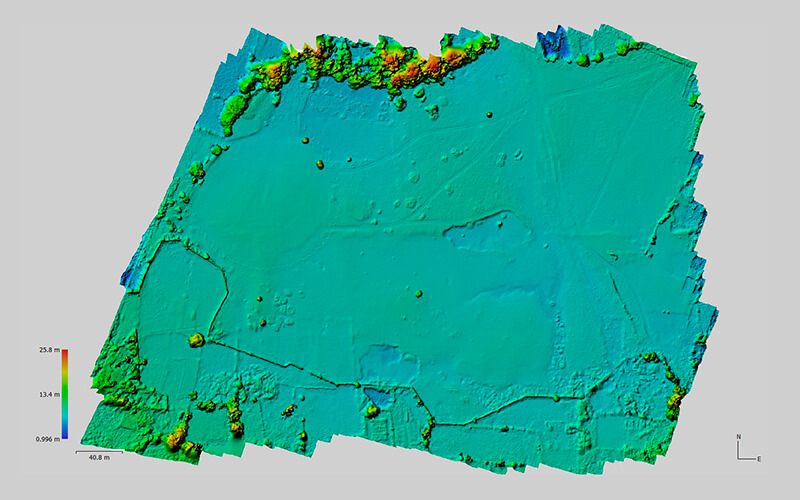

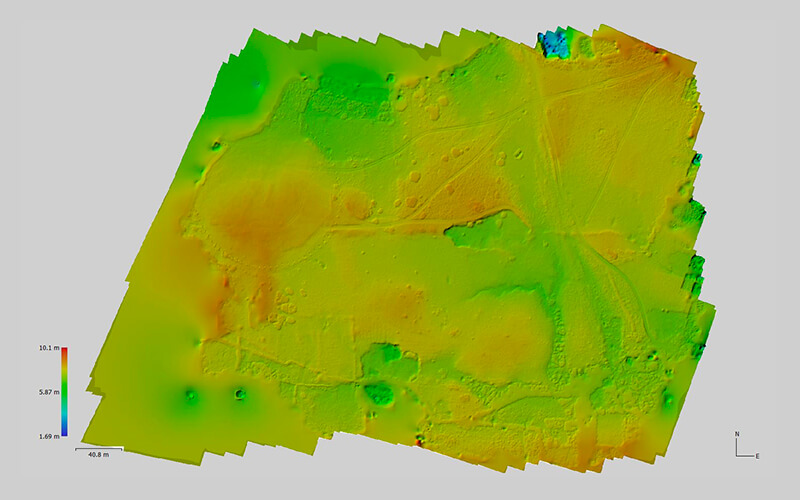

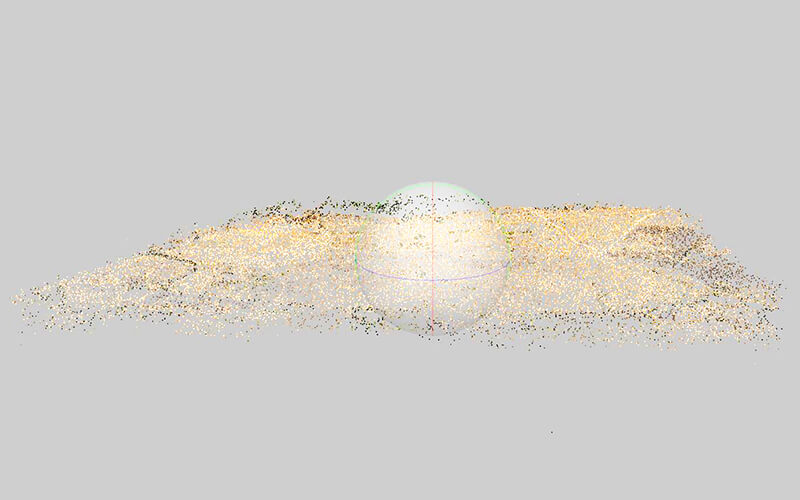

Real-world Outputs

ideaForge’s commitment to produce highest quality drones ensures that our UAVs deliver consistent results across defence, homeland security and enterprise applications

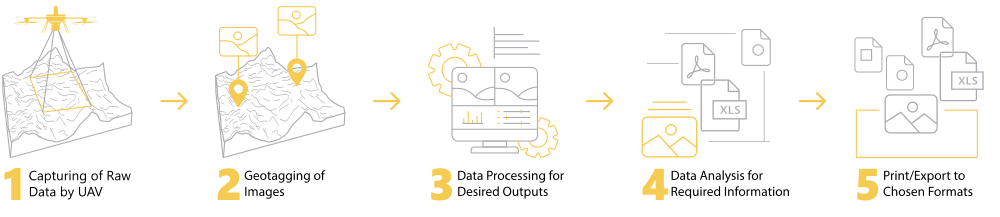

Step-by-Step Execution
