PISTA DE POUSO PARA HELICÓPTEROS

This lightweight, easy to transport, easy to assemble product, provides a solid foundation for expeditionary forces to mark out safe landing areas in order for helicopters to service Forward Operating Bases (FOB), undertake essential maintenance, or drop off supplies.

Specifically designed to suppress dust and foreign objects for pilot and crew safety, as well as asset protection.

CAPABILITIES
- HEAT RESISTANT
- PREVENT FOREIGN OBJECT DAMAGE
- NO RISK OF RUCKING OR SNAGGING
- SECURED TO THE GROUND
- PROVEN CAPABILITY
- GROUND PROTECTION
- ANTI SKID/SLID SURFACE
- AVAILABLE IN CUSTOM SIZES

FIVE KEY ELEMENTS:
- TRACKWAY - Aluminium panels that inter-lock to create the landing area.
- STILLAGES - NATO pallets for storage and transport; can be air portable on request.
- INSTALLATION KIT - equipment required for installing and removing the Trackway.
- GROUND ANCHOR STAKES - to secure the Trackway to the ground.
- MEMBRANE - a geotextile membrane that is placed underneath the Trackway to supress dust, and reduce brownout while protecting the Trackway.

TRACKWAY
Helicopter Landing Mat (HLM) can be constructed from a variety of Trackway to create a best fit solution for our customers;

PSA Trackway
- Corrugated surface;
- 9.5 kilograms per panel;

PSA-FT Trackway
- Flat Surface;
- 12.5 kilograms per panel;
- Configured for transport in 463L Pallets.

S46 Trackway
- Flat Surface;
- For heavy transport aircraft;
- 50.9 kilograms per panel.

M150 Trackway
- Corrugated surface;
- Withstands up to MLC* 150;
- 33 kilograms per panel.
*Military Load Classification (MLC)

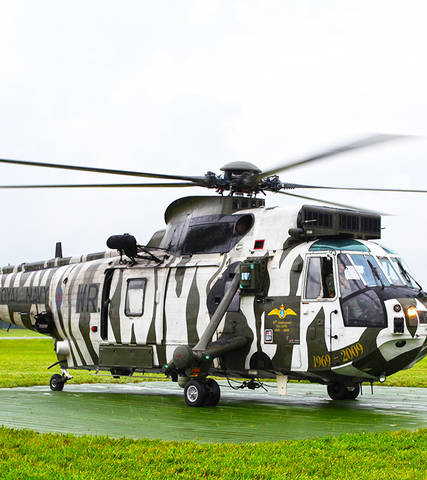

The Helicopter Landing Mat (HLM) enables fixed/rotary wing and support vehicles to manoeuvre without the risk of snagging or rucking.

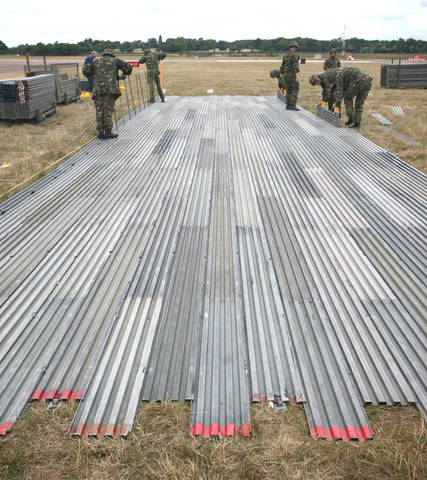

The Helicopter Landing Mat (HLM) are a NATO palletised, modular system to allow for rapidly deployment. A typical 20m x 20m helipads takes 8 personnel 4 hours to construct.

As a multipurpose solution the Helicopter Landing Mat (HLM) is suitable for taxiways, Aircraft Landing Mat (ALM), UAV Landing Mat (UAVLM), workshop areas, Rapid Runway Repair (RRR), aircraft recovery, and general
