MEDIUM GROUND MOBILITY SYSTEM BEAM DISPENSER

Used to deploy Trackway from Front-End Loaders or rough terrain Tele-handers to improve mobility for vehicles with pneumatic tyres, the Medium Ground Mobility System Beam Dispenser (MGMS BD) is mounted via a custom adapter plate and quick release coupling.

The system quickly deploys and recovers multiple lengths of Trackway to create long access roads or large hard standing areas.

CAPABILITIES
- QUICK HITCH DESIGN
- HIGH FLEXIBILITY WITH HOST MACHINES
- PNEUMATIC TYRE VEHICLES
- SPOOLING CONTROLLED IN THE CAB
- PROTECTS ENVIRONMENT
- PROVEN CAPABILITIES
- VERSATILE
- MILITARY SPECIFICATION

KEY ELEMENTS:
- TRACKWAY - modular length of aluminium panels.

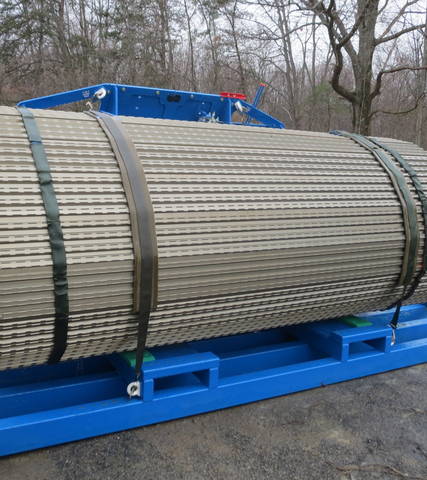

- SPOOL - a braced steel structure which holds the Trackway on the Beam Dispenser.

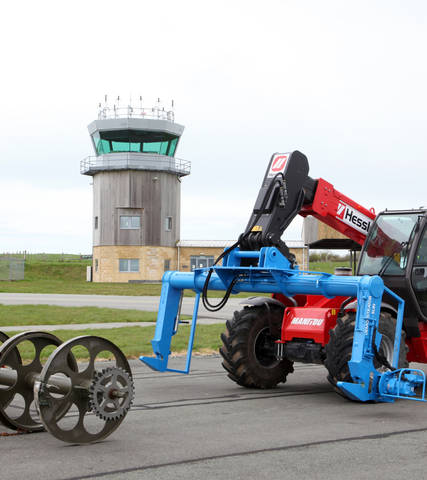

- BEAM DISPENSER - Picks up the Spools to deploy, and recover the Trackway.
- INTERFACE PLATE - custom adapter plate and quick release coupling to mount the Beam Dispenser onto the Host Machine.
- HOST MACHINE - Front-End Loader or rough terrain Tele-hander.
- ACCESSORIES - enables deployment, recovery, anchorage and field maintenance.

TRACKWAY

M30 Trackway

Designed for vehicles with pneumatic tyres;
- Withstands vehicles up to MLC* 30;
- Graded indefinitely for MLC* 30 on a 3% California Baring Ratio (CBR) ground condition;
- Width 3.3 metres.
- M30H Trackway

Male/Female Joints allow improved articulation of each panel;
- Locked together with sliding Shoot Bolts;
- Width 3.3 metres.
*Military Load Classification (MLC)

Spooling in and out is controlled by the driver via the auxiliary hydraulic circuit of the host machine. Once the Spools are locked in place the Trackway is deployed under constant tension when driving forwards and recovered hydraulically while reversing.

As a multipurpose solution the Trackway is suitable for Boat Ramp Kits (BRK), and general infrastructure use.
