MEDIUM GROUND MOBILITY SYSTEM

Creates a temporary roadway to improve mobility for vehicles with pneumatic tyres when ground bearing pressure is very low.

Medium Ground Mobility System (MGMS) is suitable for vehicles, cranes and plant equipment up to 30 tonnes.

CAPABILITIES
- 32 METRES DEPLOYED IN 5 MINTUES
- PNEUMATIC TYRE VEHICLES
- MINIMAL MANPOWER
- PROTECTS ENVIRONMENT
- OPERATES IN ALL CLIMATES
- VERSATILE
- PROVEN RELIABILITY

KEY ELEMENTS: - TRACKWAY - modular length of aluminium panels.
- SPOOL - a braced steel structure which holds the Trackway on the Fastrack.

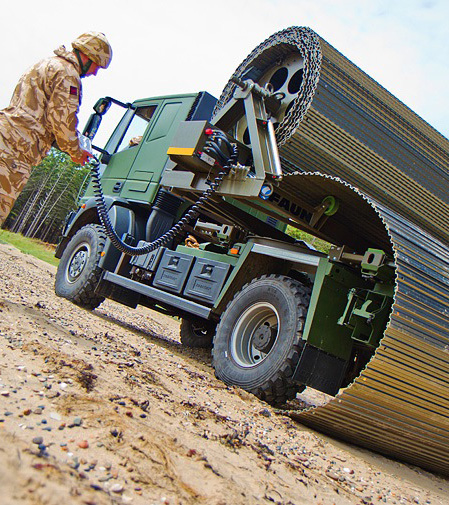

- FASTRACK - deploys, recovers, transports and stores the Trackway.
- CHASSIS - a 4x4 or 6x6 vehicle with twistlocks with a payload of at least 5T, to mount the Fastrack.
- ACCESSORIES - enables deployment, recovery, anchorage and field maintenance.

TRACKWAY

M30 Trackway

Designed for vehicles with pneumatic tyres;
- Withstands vehicles up to MLC* 30;
- Graded indefinitely for MLC* 30 on a 3% California Baring Ratio (CBR) ground condition;
- Width 3.3 metres.

M30H Trackway

Male/Female Joints allow improved articulation of each panel;
- Locked together with sliding Shoot Bolts;
- Width 3.3 metres.
*Military Load Classification (MLC)

Easily mounted to chassis with twist-locks, the Medium Ground Mobility System (MGMS) is best suited to adverse terrain conditions.

Medium Ground Mobility System (MGMS) is used worldwide, in a variety of military engineering applications, including humanitarian and disaster relief.
